| Routing | Routing capability between LAN and WAN Ethernet interface and Ethernet to serial gateway. |
| Ethernet to Serial Gateways | MODBUS TCP to MODBUS RTU; XIP to UNITELWAY; EtherNet/IP™ to DF1; FINS TCP to FINS Hostlink; ISO TCP to PPI, MPI (S7) or PROFIBUS (S7); VCOM to ASCII. |

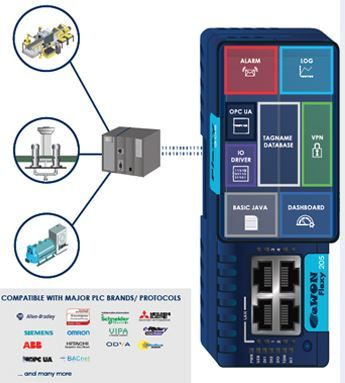

| Data Acquisition Protocols | OPC UA, MODBUS/RTU, MODBUS/TCP, Unitelway, DF1, PPI, MPI (S7), PROFIBUS (S7), FINS Hostlink, FINS TCP, EtherNet/IP™, ISO TCP, Mitsubishi FX, Mitsubishi melsec, Hitachi EH, ASCII, BACnet/IP. Stored in 2500 internal tags. |
| Data Publishing Protocols | OPC UA, Modbus, MQTT, SNMP, HTTPs. |
| Alarms | Alarms notification by email, SMS, FTP put and/or SNMP traps.
4 Thresholds : low, lowlow, high, highhigh + deadband and activation delay. |
| Datalogging | Internal database for data logging (real-time logging and historical logging up to 1,000,000 timestamps). Historical data can be exported to DataMailbox or transferred by FTP or email. |
| SD card reader | A/ for easy commissioning (firmware upgrade, backup, Talk2M registration) B/for Extended User Memory. |
| Router | IP filtering, IP forwarding, NAT, Port forwarding, Proxy, Routing table, DHCP client/server, NAT 1 :1. |
| VPN Tunnelling | Open VPN either through UDP 1194 or TCP 443 ( HTTPs port). |
| VPN Security | VPN sessions are end-to-end encrypted using SSL/TLS protocol. Communications between the remote user and the eWON are fully encrypted using the SSL/TLS protocol, thereby ensuring data authenticity, integrity & confidentiality. Indeed, all users and eWON units are authenticated using x509 SSL certificates and end-to-end traffic is encrypted using strong symmetric & asymmetric algorithms that are part of the SSL/TLS protocol cipher suite. |
| Programmable | Script interpreter for Basic language, Java 2 Standard Edition environment. |
| Synchronization | Embedded real-time clock, manual setup via http or automatic via NTP. |
| File Management | FTP client and server for configuration, firmware update and data transfer. |
| Website | Embedded web interface with setup wizards for configuration and maintenance (no extra software needed). Authentication with login/password and user management capability. Possibility of uploading custom web GUI. Compatible with viewON web HMI. |
| User Flash Disk | up to 30MB available for user application. |
| Mechanicals | Din Rail or wall screw fixing system.
Dimensions: 133 x 122 x 55 mm (H x D x W ).
Weight: 280 g without extension card |
| Power supply | 12 - 24VDC +/-20%, LPS.
Consumption: depending on the extension card installed (see Installation guide on our website). |
| Input/output | 2x digital input: 0 to 12/24VDC; 1.5kV isolation.
1x digital output: open drain (MOSFET) 200mA; 1.5 kV isolation. |

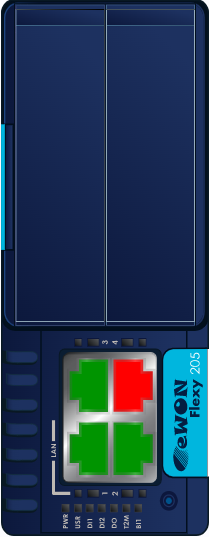

| Flexy 205 base module interface | 4 x RJ45 Ethernet 10/100 Mb .Configurable LAN/WAN ports, port 1 always LAN |
| Temperature Range | Operating: -25°C to +60°C, 10 to 95% relative humidity (non-condensing).
Storage: -30°C to +70°C, 10 to 95% relative humidity (non-condensing). |
| Marking | CE, cURus, FCC, UKCA, RCM |
| Warranty | 12 months |
