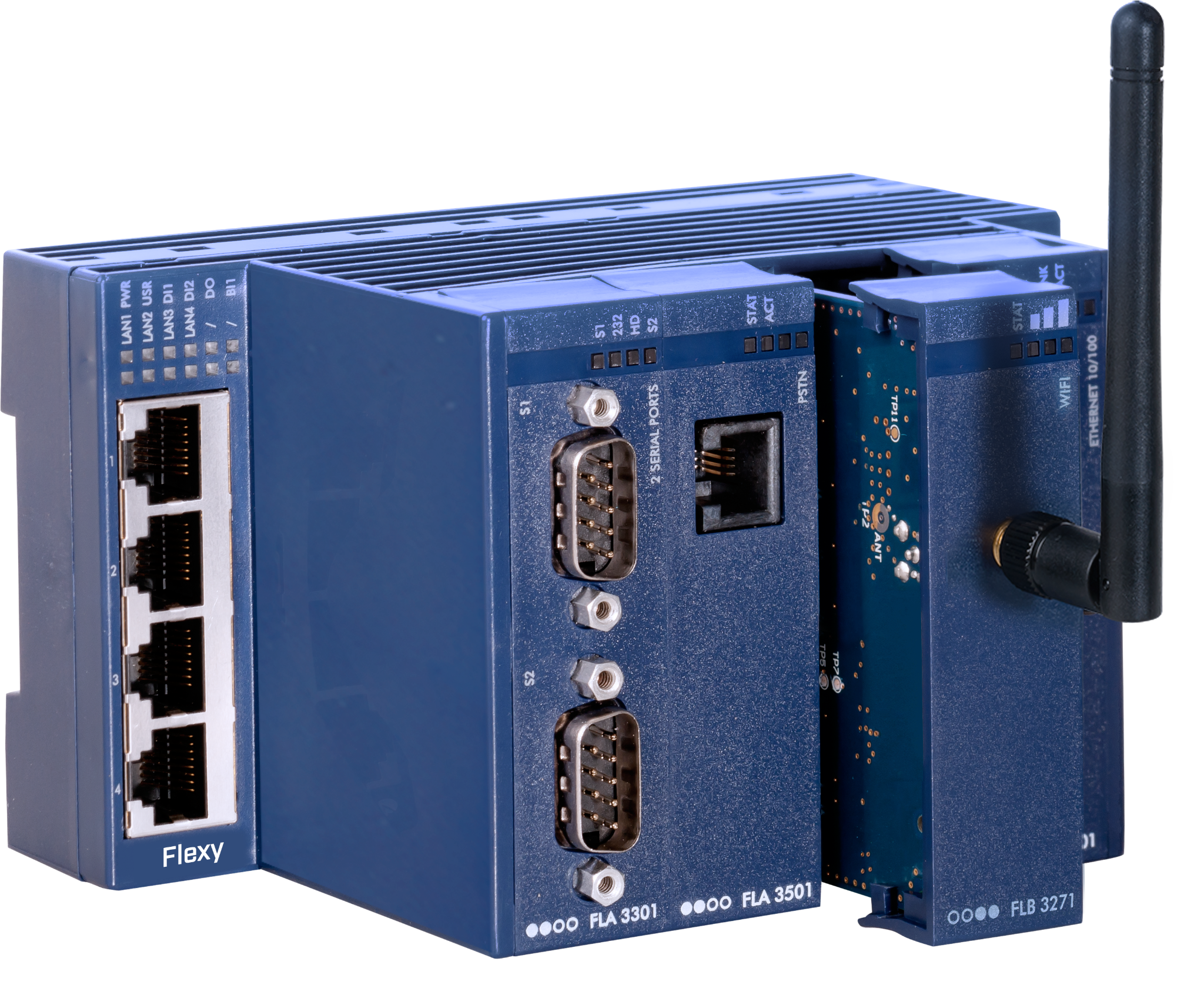

Ewon Flexy 201


The Ewon Flexy family is a range of industrial modular gateways that allows universal communication with varied field equipment regardless of the protocol used.

It is possible to configure data acquisition & data logging, routing and more.

The Ewon Flexy 201 is an Ewon gateway based on a 4 Ethernet ports.

Key Benefits


VPN Remote Access
Security-certified global cloud infrastructure
Easy setup for unmatched connectivity success

LOCAL DATA COLLECTION AND DASHBOARDSAll major PLC protocols for data logging and alarm notification
Local web-dashboard for remote monitoring
OPC UA server to publish data to factory systems
CENTRAL DATA COLLECTION THROUGH THE INTERNETFull flexibility to send data to any server (local or cloud)
Out of the box solutions with HMS Solution Partners
MQTT or HTTPS using embedded BASIC or Java Virtual Machine

PLC Connectivity

Rockwell Automation/Allen BradleySLC5/500 Series
Micro/Compact/Control Logix Series
Micro Series
SiemensS5 Series*
Schneider ElectricTSX Series
M Series (M258, M340,...)
Twido Series
MitsubishiiQ/FX5 Series
Q series
L Series
FX3 series
VIPASpeed 7 series
N Series
Generic Modbus TCP/RTUAny Modbus TCP/RTU Slaves
(Beckoff, Crouzet, ABB, Delta,...)
Generic OPCUAAny OPCUA Servers
(B&R, Beijer, Beckoff,...)
Generic BACNET IPAny BACNET IP Servers
Generic SNMPAny SNMP v1 servers

* polling only, no remote access
** remote access to safety PLC devices (-F series) is not supported

Technical Specifications


Routing capability between LAN and WAN Ethernet interface and Ethernet to serial gateway.

Ethernet to Serial Gateways

MODBUS TCP to MODBUS RTU, XIP to UNITELWAY, EtherNet/IP&trade, to DF1, FINS TCP to FINS Hostlink, ISO TCP to PPI, MPI (S7) or PROFIBUS (S7), VCOM to ASCII. (Applicable to the serie 200)

Data Acquisition ProtocolsOPC UA, MODBUS/RTU, MODBUS/TCP, Unitelway, DF1, PPI, MPI (S7), PROFIBUS (S7), FINS Hostlink, FINS TCP, EtherNet/IP™, ISO TCP, Mitsubishi FX, Mitsubishi Melsec, Hitachi EH, ASCII, BACnet/IP. Stored in 2500 internal tags.
Data Publishing ProtocolsOPC UA, Modbus, MQTT, SNMP, HTTPs.
AlarmsAlarms notification by email, SMS, FTP put and/or SNMP traps.
4 Thresholds : low, lowlow, high, highhigh + deadband and activation delay.

Internal database for data logging (real-time logging and historical logging up to 1,000,000 timestamps). Historical data can be exported to DataMailbox or transferred by FTP or email.

SD card reader

A/ for easy commissioning (firmware upgrade, backup, Talk2M registration) B/for Extended User Memory.


IP filtering, IP forwarding, NAT, Port forwarding, Proxy, Routing table, DHCP client/server, NAT 1 :1. (Applicable only to the serie 200)

VPN Tunnelling

Open VPN either through UDP 1194 or TCP 443 ( HTTPs port).

VPN SecurityVPN sessions are end-to-end encrypted using SSL/TLS protocol. Communications between the remote user and the eWON are fully encrypted using the SSL/TLS protocol, thereby ensuring data authenticity, integrity & confidentiality. Indeed, all users and eWON units are authenticated using x509 SSL certificates and end-to-end traffic is encrypted using strong symmetric & asymmetric algorithms that are part of the SSL/TLS protocol cipher suite.

Script interpreter for Basic language, Java 2 Standard Edition environment.


Embedded real-time clock, manual setup via http or automatic via NTP.

File ManagementFTP client and server for configuration, firmware update and data transfer.

Embedded web interface with setup wizards for configuration and maintenance (no extra software needed). Authentication with login/password and user management capability. Possibility of uploading custom web GUI. Compatible with viewON web HMI.

User Flash Diskup to 30MB available for user application.
MechanicalsDin Rail Mounting
Dimensions: 80 x 89 x 134 mm (H x D x W );
Weight: < 500 g
Power supply12 - 24VDC +/-20%, LPS.
Consumption: depending on the extension card installed (see Installation guide on our website).
Input/output2x digital input: 0 to 12/24VDC; 1.5kV isolation.
1x digital output: open drain (MOSFET) 200mA; 1.5 kV isolation.
Flexy base module interfaceFlexyn01*: 4 x RJ45 Ethernet 10/100Mb switch, 1,5kV isolation
Temperature RangeOperating: -25°C to +60°C, 10 to 95% relative humidity (non-condensing).
Storage: -40°C to +70°C, 10 to 95% relative humidity (non-condensing).
MarkingCE, cULus listed, FCC.


Type tests

Temperature - Operating & Storage tested according to:

IEC 60068-2-1 Cold test
IEC 60068-2-2 Dry heat test
IEC 60068-2-14 Change of temperature
IEC 60068-2-30 Cyclic damp heat test

Vibration & shocks tested according to:

IEC 60068-2-27 Bumps
IEC 60068-2-64 Vibration (broad-band random)
IEC 60068-2-6 Vibration (sinusoidal)


Compliant with:

EMC directive 2014/30/EU (Immunity: industrial level)
RE directive 2014/53/EU*
ROHS2 2011/65/EU directive with amendment 2015/863
REACH regulation

* Applicable in combination with a radio extension card (Cellular & WiFi)

UKCACompliant with: Electromagnetic Compatibility Regulations 2016; Radio Equipment Regulations 2017; The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
FCC/ICCThis product complies with the Part 15 of the FCC rules

This device complies with Japanese regulations.


Russia FSS notification.


The product fulfils the requirements of:

EN IEC 62368-1:2020 + A11:2020
UL 62368-1 Third Edition, revised October 22, 2021
CAN/CSA C22.2 No. 62368-1: 19 Third Edition, revised October 22, 2021
EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013
