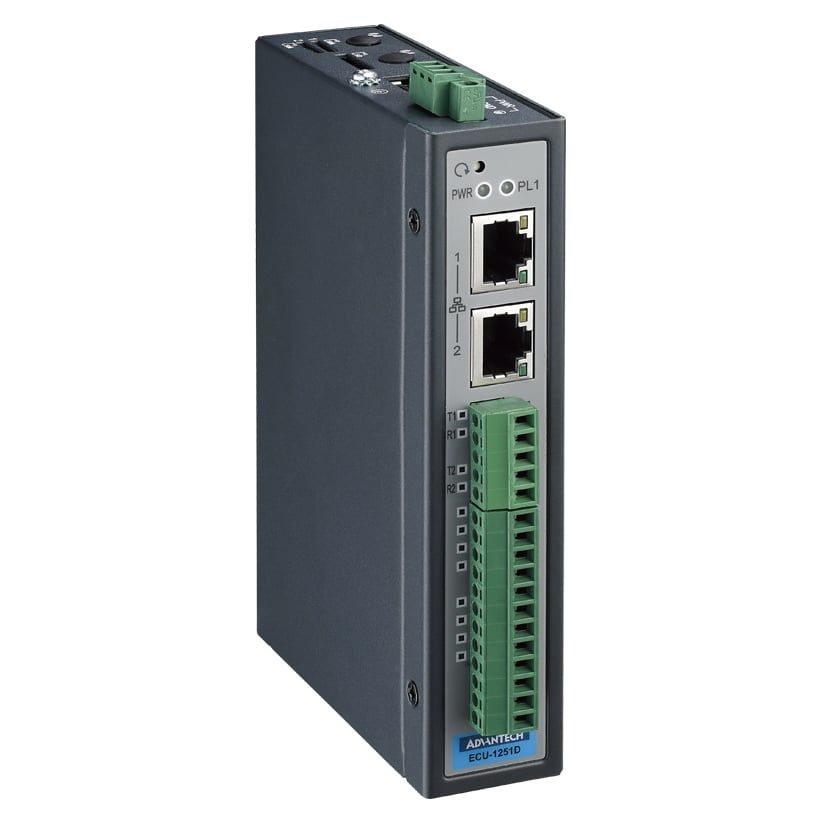

ECU-1251D - Gateway with DI/DO for IIoT Applications

• Part Number
• Details

• ECU-1251D-R10AA

  Environment

• Operating Temperature
• Relative Humidity
• Storage Temperature

• -40~70 °C (-40~158 °F)

• 5~95% RH (non-condensing)

• -40~85 °C (-40~185 °F)

Ethernet

• Speed

• 10/100 Mbps

Expansion Function

• SIM card slot

• Nano SIM card

General

• Grounding Protection
• Programming Language
• Protocol

• Chassis grounding

• Linux C

• OPC-UA Client & Server, DNP3.0 Client & Server,
  IEC-60870-5-104 Master & Slave, IEC-60870-5-101
  Slave, Modbus RTU/TCP Master & Slave, BACNet/IP
  Server

Hardware

• Certification
• CPU
• LED Indicators
• Memory
• OS Support
• Power Input
• Storage
• Watchdog Timer

• CE, FCC class A

• TI Cortex A8, 600MHz

• PWR, RUN / ERROR, TX1, RX1, TX2, RX2, Program

• DDR3L 256MB

• Linux

• 10~30 VDC

• 1 x 512MB NAND Flash

• 15~255 s

I/O Interface

• Expansion
• LAN Ports
• Power Connector
• Serial Ports

• 1 x Full-size mPCIe Slot

• 2 x 10/100 Mbps

• 1 x 3-Pin Terminal Block

• 2 x RS-232/485 (Terminal Block)

Mechanical

• Dimension (W x H x D)
• Enclosure
• Form Factor
• Mounting

• 140 x 30 x 96.5 mm

• SECC

• Passive Cooling and Front Accessible

• Wall, DIN-rail

Power Requirements

• Input Voltage

• 10~30 VDC

Serial Communication

• Baud Rate (bps)
• Data Signals

• 50 bps~115.2 kbps

• RS-232: TxD, RxD, GND
  RS-485: Data+, Data-

Wireless Communication

• Standard(Technology)

• WIFI, LTE
