Bộ chuyển đổi OPC UA to BACnet - Converter
Mã sản phẩm: HD67B11 Tình trạng: Còn hàng Thương hiệu: ADFWeb
Chính sách bán hàng
Cam kết 100% chính hãng
Miễn phí giao hàng
Hỗ trợ 24/7
Thông tin thêm
Hoàn tiền
111%
nếu hàng giả
Mở hộp
kiểm tra
nhận hàng
Đổi trả trong
7 ngày
Mô tả sản phẩm
| OPC UA / BACnet - Converter |

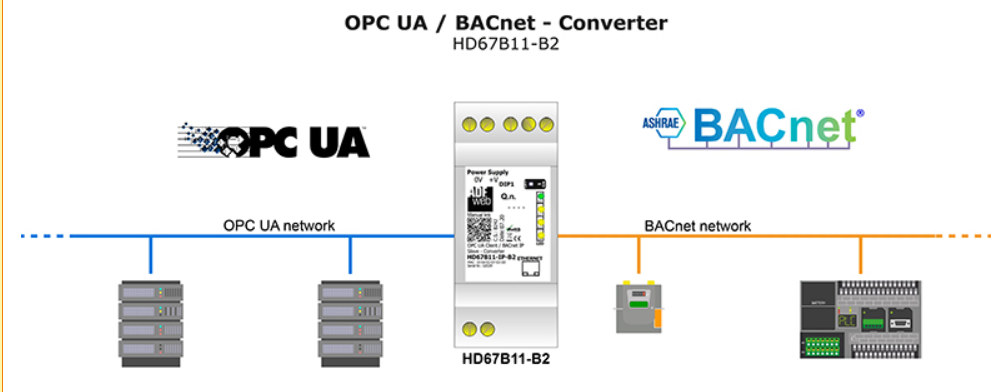

This series of products allows to integrate an OPC UA network with a BACnet network. The HD67B11 is an OPC UA Client / BACnet Slave Converter and it allows you to read/write the data from one or more OPC UA Servers using a BACnet Master (like PLC, PC etc). The HD67B31 is an OPC UA Server / BACnet Master Converter and it allows you to read/write the data from one or more BACnet slaves (like I/O, display etc) using one or more OPC UA Clients. The HD67B32 is an OPC UA Server / BACnet Slave Converter and it allows you to interface a BACnet Master (like a PLC, PC etc) with one or more OPC UA Clients in order to exchange the informations between the networks. The OPC UA communication can be encrypted, ensuring a SECURE and SAFETY communication. HD67B11-IP, HD67B31-IP, HD67B32-IP support both BACnet/IP and BACnet/Ethernet. The connection to BACnet is done over Ethernet. HD67B11-MSTP, HD67B31-MSTP, HD67B32-MSTP support BACnet MSTP. The connection to BACnet is done over RS485. |
| Order Code | Price info | Details | Description | User manual | Operating Temperature | ||
 OPC UA Client / BACnet | |||||||
| HD67B11-IP-B2 | View | OPC UA Client / BACnet IP Slave - Converter (Housing type: B, Terminal Blocks Connectors ) |  | -40° to +85° | |||
| HD67B11-MSTP-B2 | View | OPC UA Client / BACnet MSTP Slave - Converter (Housing type: B, Terminal Blocks Connectors ) | | -40° to +85° | |||
| OPC UA Server / BACnet | |||||||
| HD67B31-IP-B2 | View | OPC UA Server / BACnet IP Master - Converter (Housing type: B, Terminal Blocks Connectors ) | | -40° to +85° | |||
| HD67B31-MSTP-B2 | View | OPC UA Server / BACnet MSTp Master - Converter (Housing type: B, Terminal Blocks Connectors ) | | -40° to +85° | |||
| HD67B32-IP-B2 | View | OPC UA Server / BACnet IP Slave - Converter (Housing type: B, Terminal Blocks Connectors ) | | -40° to +85° | |||
| HD67B32-MSTP-B2 | View | OPC UA Server / BACnet MSTP Slave - Converter (Housing type: B, Terminal Blocks Connectors ) | | -40° to +85° | |||
